Full design and acoustics for an exceptional new learning and events centre

A 1,550sqm building split over seven levels, designed as a flexible learning space. Natural daylight and ventilation, along with thermal mass ensure comfort while a closed-loop ground source system, partially powered by a PV array, provides efficient thermal management. Achieved BREEAM Excellent.

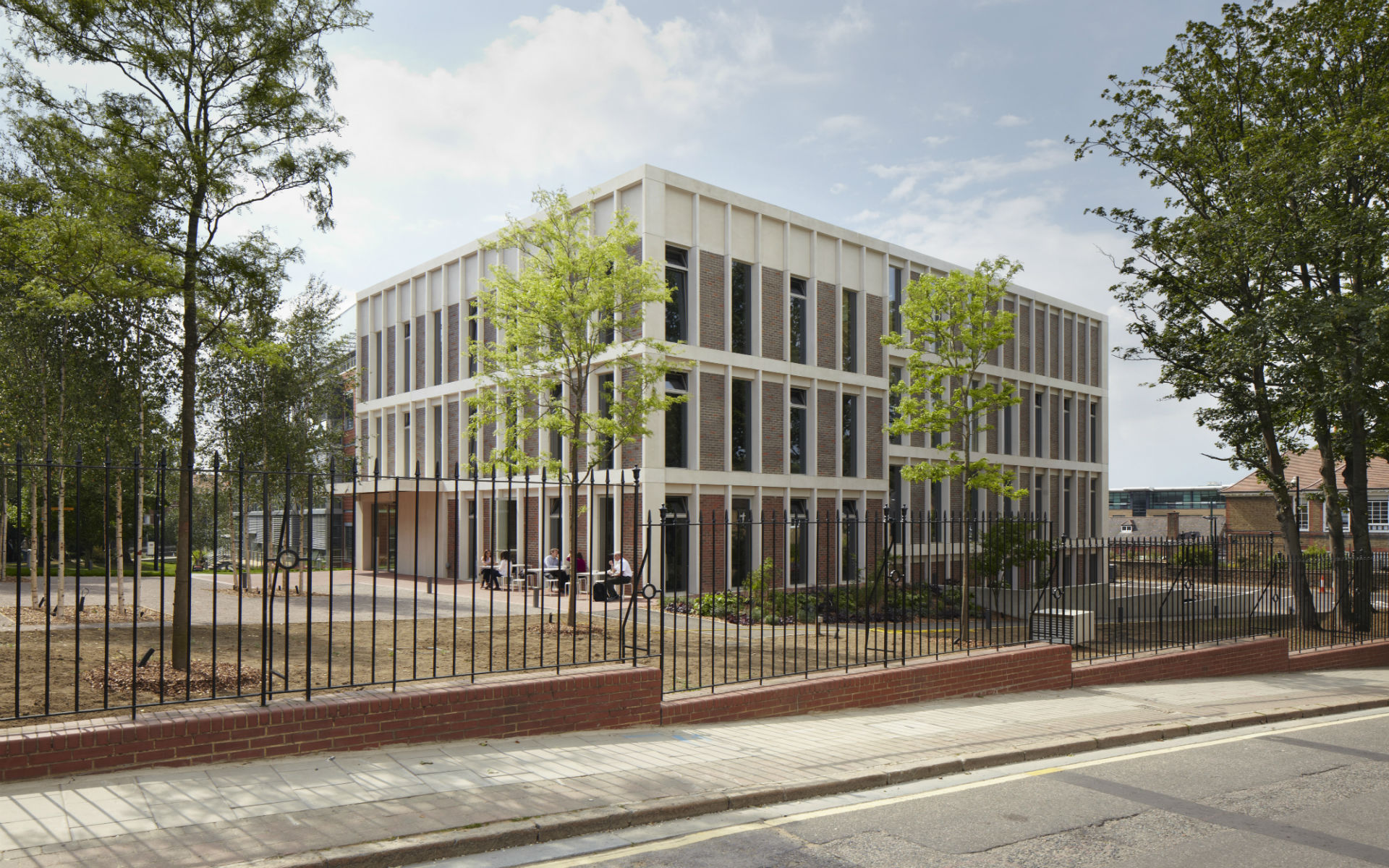

ORTUS is a new learning and events centre based in Camberwell, South London, adjacent to the world-renowned Institute of Psychiatry, Maudsley Hospital and King's College London. Striking architectural features and sustainable technologies underpin this learning environment, which houses teaching and conference facilities, a community café and exhibition spaces.

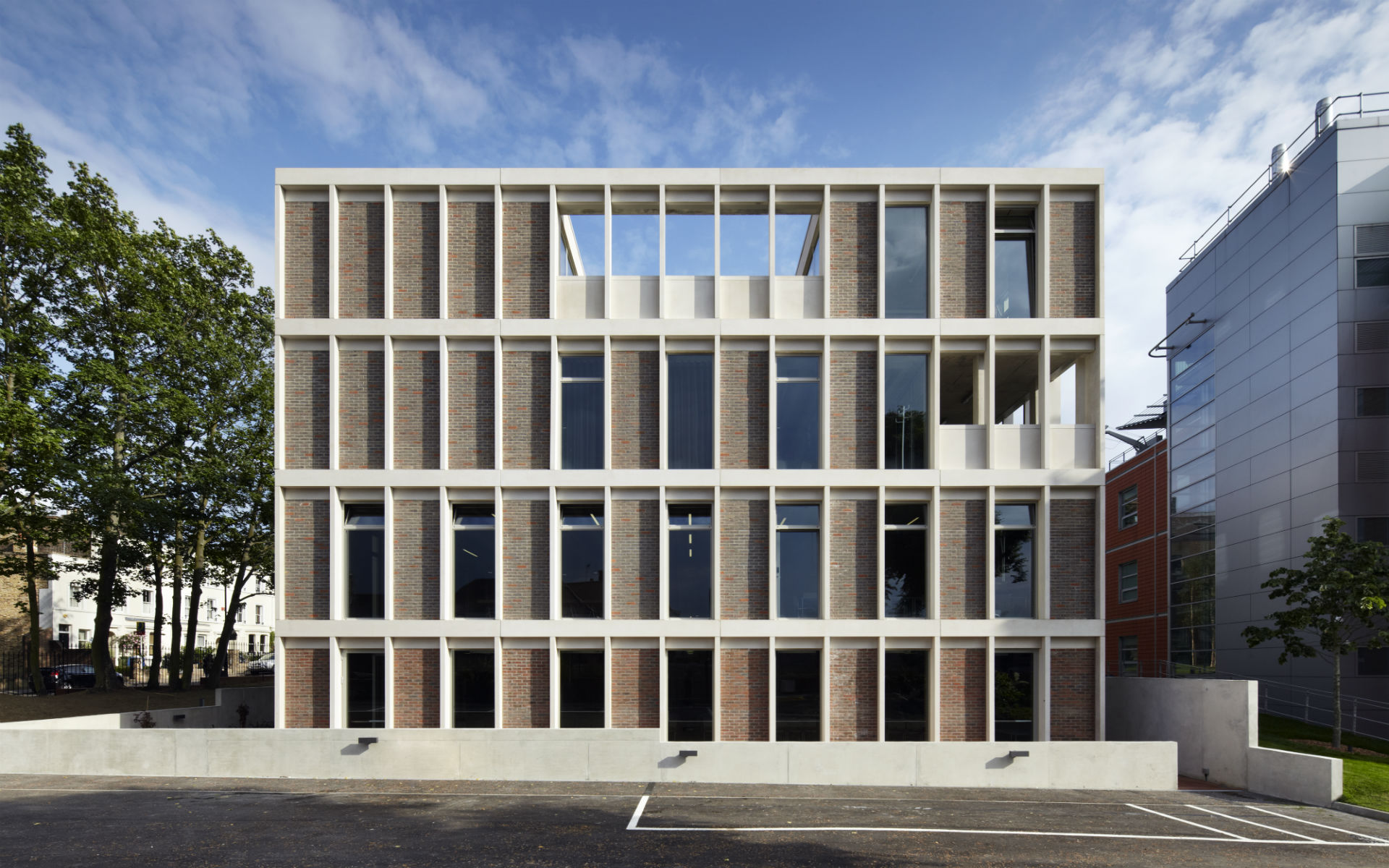

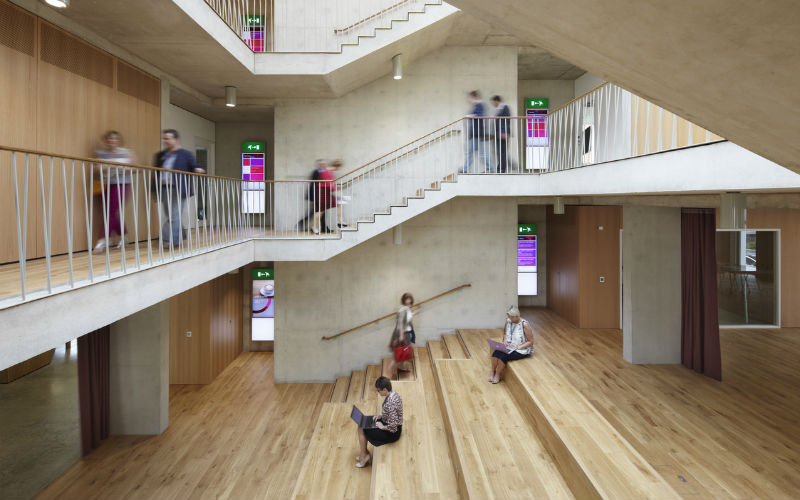

Conceived as a free-standing pavilion, the building features multi-functional spaces arranged at half-level intervals and connected through a central atrium. Strategic window placement and floor level offsets, allow natural daylight to flood the interior while managing solar gain to prevent overheating. To enhance comfort and efficiency, the building employs both manual and automated natural ventilation systems. Additionally, the use of profiled soffit and exposed fair-faced concrete brickwork maximises the benefits of thermal mass, further stabilising indoor temperatures and reducing reliance on mechanical cooling. 

A sophisticated closed-loop ground source installation with seven 120-meter vertical loops efficiently provides thermal management for both heating and cooling needs. This system is partially powered by a roof-mounted photovoltaic (PV) array, which contributes to the building's renewable energy supply. An integrated KNX system is employed to manage the heating, ventilation, and air conditioning (HVAC) systems along with lighting, ensuring precise control and optimisation of energy use throughout the building. 

Ortus achieved BREEAM ‘Excellent' and is EPC ‘A'-rated, ranking highest for sustainability among all National RIBA Award winners in the Architects Journal 2014. Beyond these credentials, the centre provides a flexible learning environment, promoting connectivity and community through thoughtful space planning and cutting-edge technologies, making it a truly holistic and forward-thinking space.

Awards

2013 – Brick Awards Best Education Building Winner
2013 – Brick Awards Supreme Winner
2013 – WAN Awards – Civic Buildings Shortlisted
2013 – WAN Awards – Effectiveness Shortlisted
2013 – ACA’s PPC Innovation in Partnering Awards Highly Commended
2014 – British Construction Industry Awards Building Project of the Year (up to £10M) Winner
2014 – British Construction Industry ‘Best Practice’ Award Shortlisted
2014 – British Construction Industry ‘Prime Minister’s Better Public Building Award’ Shortlisted
2014 – RIBA National Award Winner
2014 – RIBA Stirling Prize Mid-listed
2014 – RIBA London Regional Award Winner
2014 – New London Awards - Best in Education Winner
2014 – Civic Trust Award Winner
2014 – Building Better Healthcare Awards – Grand Prix Design Winner
2014 – Building Better Healthcare Awards – Best Mental Healthcare Development
